Network Video Recorder (16-channel/Dual-bay)

E6126-16

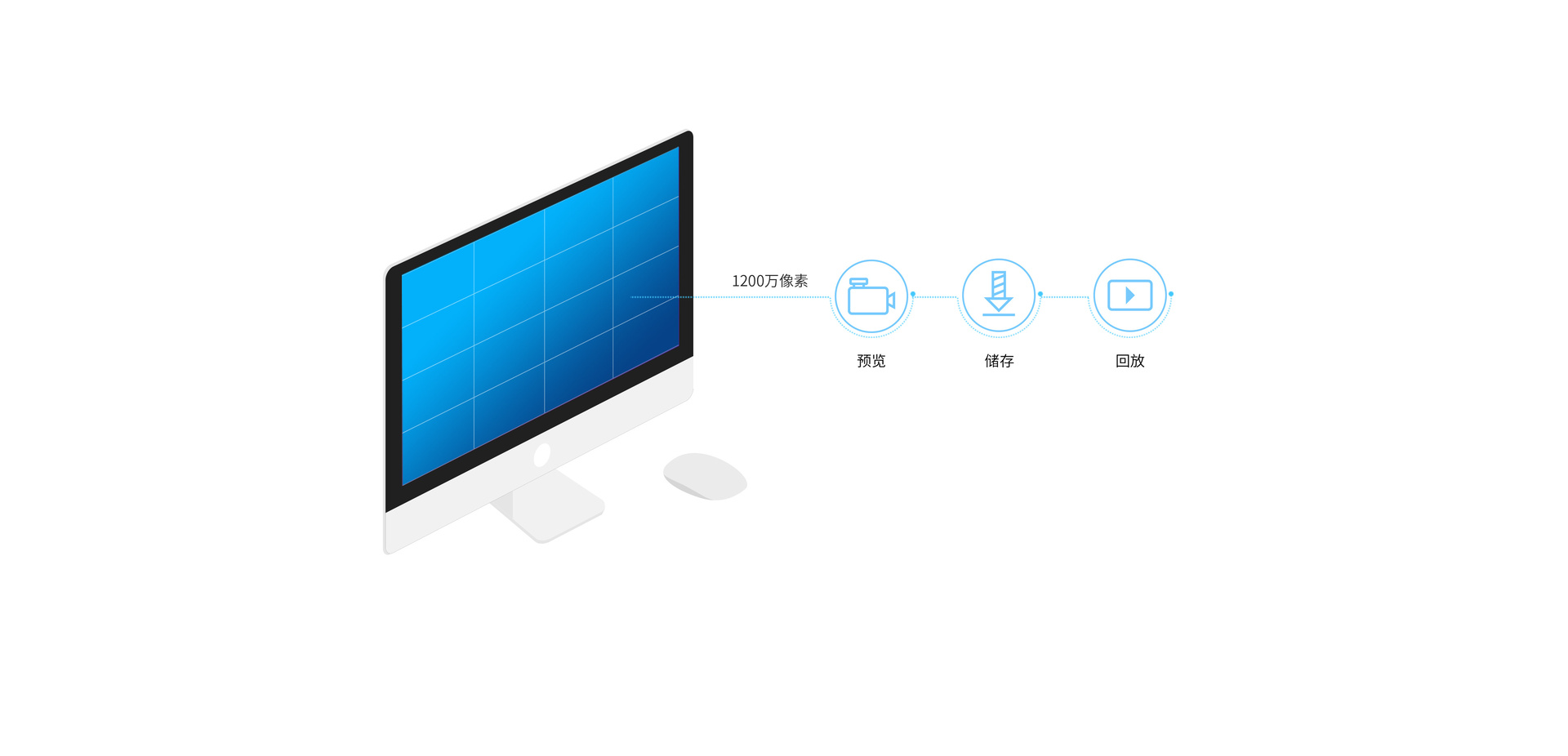

Network hard disk recorder 16-channel simultaneous monitoring, supports up to 12MP cameras

2 hard drive bays, supports 14TB hard drives and H.265+ intelligent encoding, doubling storage time

Network video recorder E6126-16 Supports 12-channel 1080P simultaneous decoding, HD preview & playback

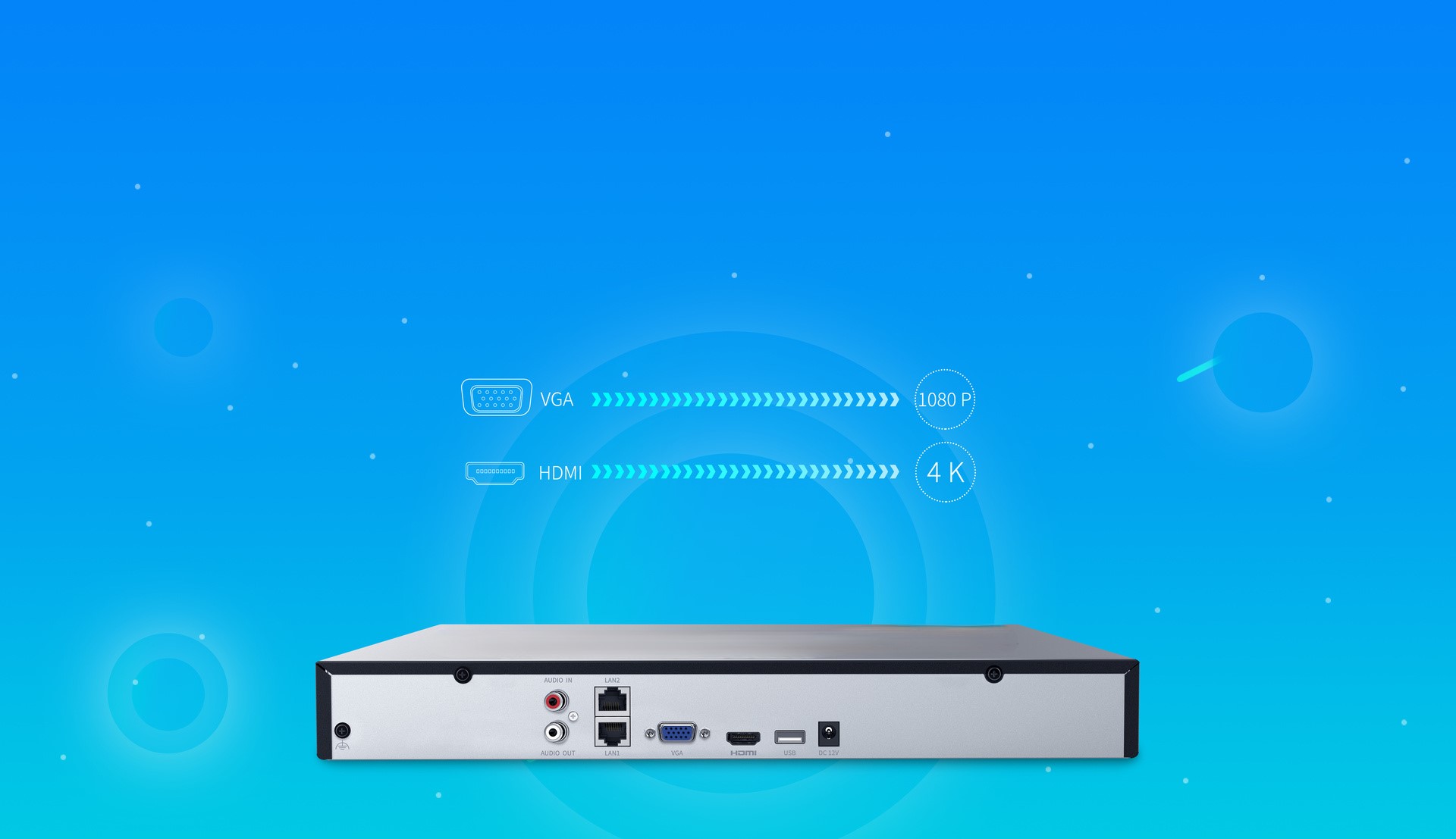

Supports VGA and HDMI simultaneous output, HDMI supports up to 4K display output

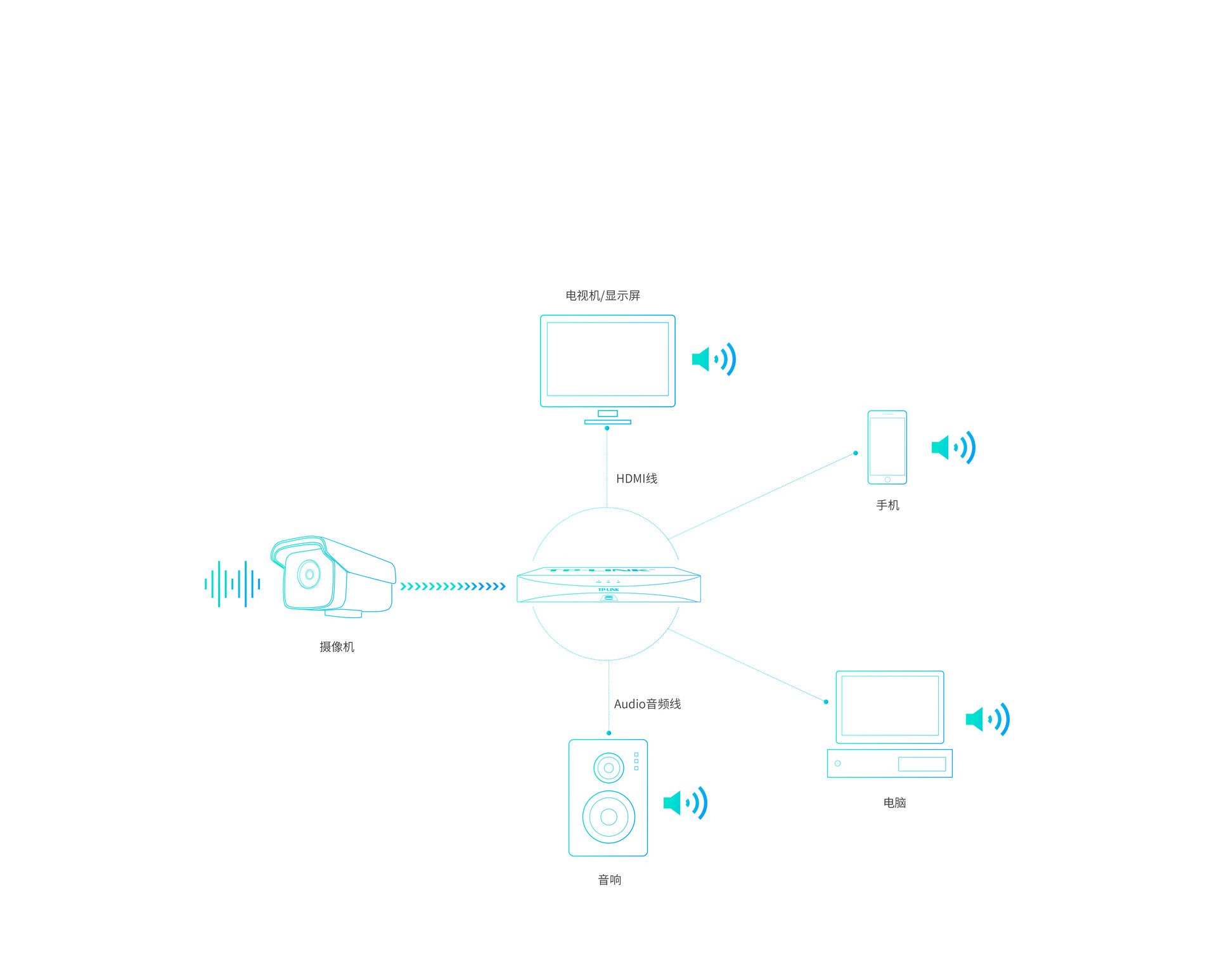

Provides audio input/output interfaces, supporting two-way audio

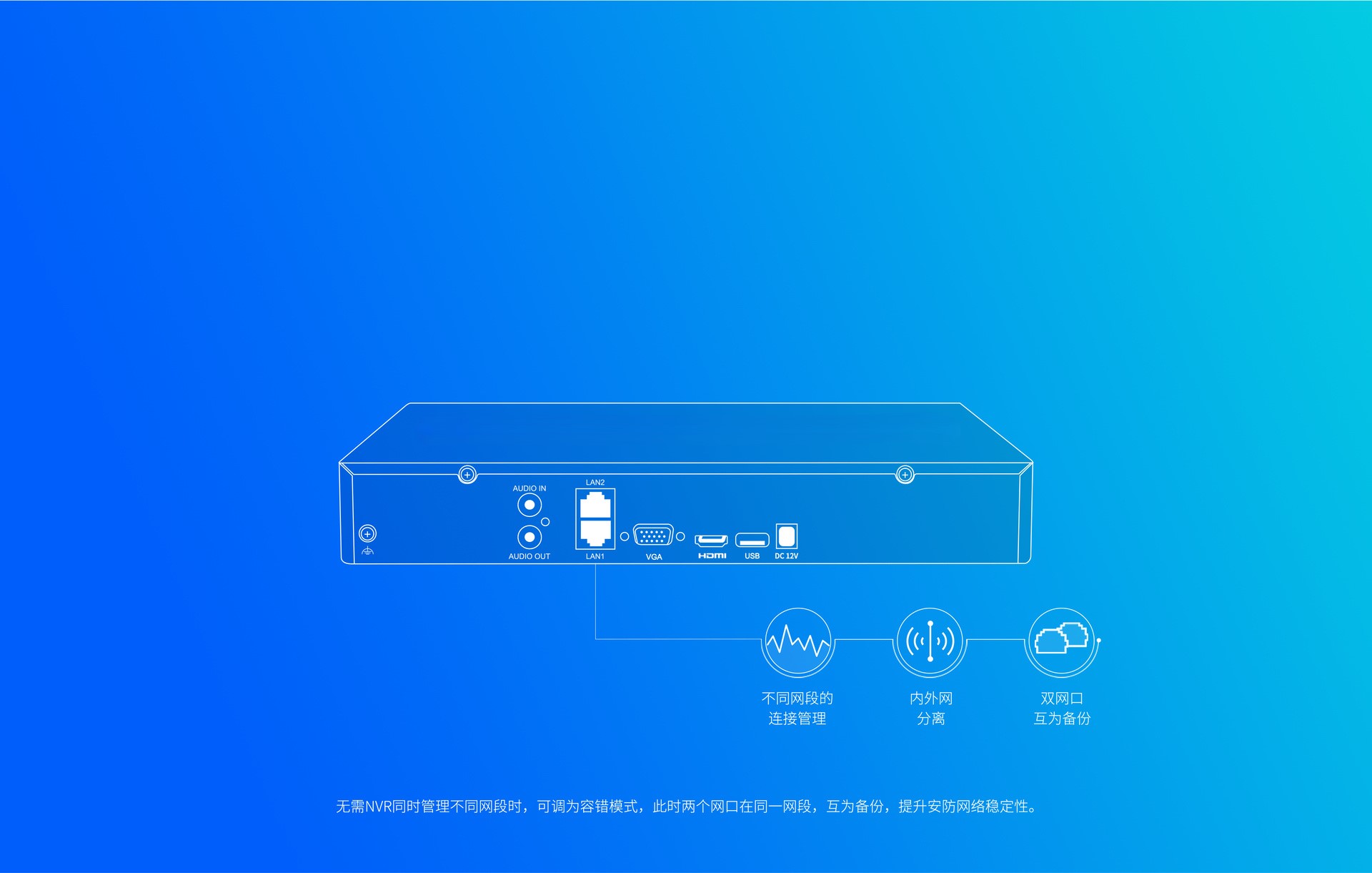

Provides dual gigabit Ethernet ports, supporting multi-access, fault-tolerant, and aggregation modes

Up to 9-channel simultaneous playback, with automatic marking and intelligent playback of people and vehicles, improving recording retrieval efficiency

Customizable scene layout, freely arrange advertising windows to suit your needs

Supports remote desktop access from clients, direct APP connection, and other features

Supports adding, configuring, managing, and diagnosing APP/utility, providing one month of free cloud storage service

Video Parameters

Network Video Input

16 channels

Network Video Access Bandwidth 80Mbps (16 channels)

Video Output

1 VGA, resolutions: 1024×768/60Hz, 1280×720/60Hz, 1280×1024/60Hz, 1920×1080/60Hz

1 HDMI, resolutions: 1024×768/60Hz, 1280×720/60Hz, 1280×1024/60Hz, 1920×1080/60Hz, 2560*1440(2K)/30Hz, 3840×2160(4K)/30Hz

Video Compression Standard

H.265+/H.265/H.264

Recording Resolution

12MP/8MP/5MP/3MP/1080P/UXGA/960P/72 0P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Functions

Recording Modes

Manual recording, timed recording, motion detection recording, intelligent event recording

Multi-channel playback

Up to 9 simultaneous playback screens

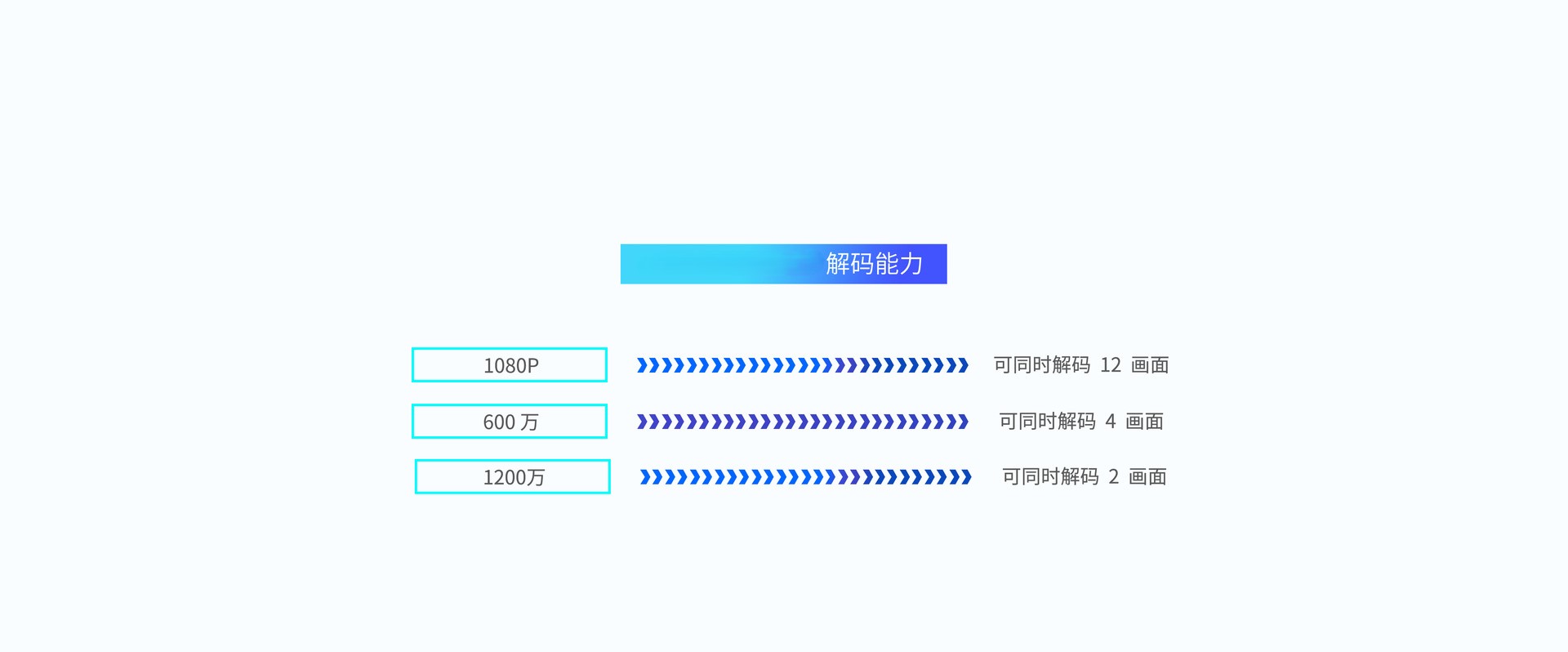

Decoding Capability

12*1080P

Special IPC Form Factors

Pan-and-shoot linkage, dual-lens splicing, fisheye, etc.

Fisheye Correction

Simultaneously corrects 4 fisheye IPCs, with a maximum total corrected pixel count of 1200W

SATA Interfaces

2 built-in SATA interfaces, supporting up to 14TB hard drives

USB Interfaces

2 USB 2.0 interfaces

VGA Interface

1

HDMI Interface

1

Network Interfaces

2 10/100/1000Mbps adaptive RJ45 ports

Indicator Lights 1 Network Status Indicator

1 Power Status Indicator

1 Hard Drive Status Indicator

Audio Interface

Audio Input/Output Interface

General Specifications

Power Supply

Less than 3.6W (excluding hard drive)

Operating Temperature

-10℃ ~ 55℃

Operating Humidity

10% ~ 90%

Dimensions

379mm × 278mm × 44mm

Weight

≤1380g (excluding hard drive)

Accessories

Wired Mouse, SATA Data Cable, Hard Drive Power Cable
